Winter ver 2 rev 1

Smart card hardware interface & monitoring/intercept device

Project Status

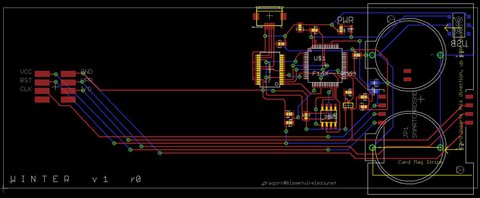

• Hardware design (complete, winter-ver2-rev1, gerber files in source)
• Hardware production (complete boards returned from fab)
• Debug firmware (complete, basic firmware tests working)
• Flash filesystem (complete, basic page allocation and extended timing logs)
• Sniffing firmware (complete iso7816 sniffing to live usb/season and flash storage)
• Season-style live sniffing to PC (complete SeasonOutput0)
• Complete UI for dumping logs (complete WinterOutput0)
• Spoofing firmware (partial v2r1 has mostly-untested injection capabilities)

Data

Winter v1

• WinterBom0 - Bill of Materials for Winter version 1
• WinterErrata0 - Errata in Winter version 1

Winter v2

• WinterBom1 - Bill of Materials for Winter version 2 rev 1
• WinterErrata1 - Errata in Winter version 2

Common

• SeasonOutput0 - Example output of snooping ATR in live output / season mode
• WinterOutput0 - Example sniffing/log retrieval
