Important News:

to get the support and development sorted we created a forum where everything about it can be discussed! Join in and help us spreading this project even more, or just get the support you need!

Um die Hilfe und Entwicklung rund ums MultiDisplay auf einem Fleck zu konzentrieren haben wir ein Forum dafür erstellt! Registrierts Euch, und helft uns dabei das Projekt weiter zu verbessern, oder auch einfach wenn Ihr Fragen habts :)

multidisplay V2 - the new generation since 2012

Its running stable and everything needed to duplicate it is avaiable here :)

An opensource datalogger, boost controller and display for cars

The hardware is an Arduino, a 5V power supply designed for the 12V car enviroment and some Sensor circuits. This picture shows the older V1 version:

multidisplay

features:

  • 3.3 V support for bluetooth modules
  • 12V Input, but very robust for the automotive enviroment.
  • 20x4 LCD Support.
  • Seeeduino Mega with the ATmega1280/2560.
  • speed input
  • gear computation
  • gear and rpm dependent N75 boost control with PID!
  • 8 Typ K Thermocouples for Exhaust Gas Temperature measurement.
  • RPM measurement.
  • RGB Warn LED (i.e. high EGT).
  • 8 VDO Sensors, pressure or temperature.
  • Lamba measurement with small band probe or wideband signal of a PLX SM-AFR or similiar
  • Throttle position
  • Mass air flow
  • Boost measurement.

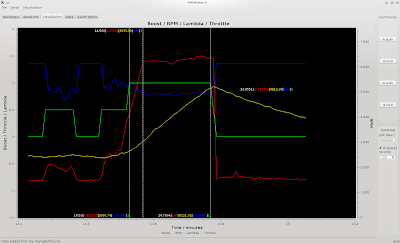

  • Streaming the data to a pc and visualizing it there.
  • Recording of events (like maximum RPM)
  • reading the BorgWarner EFR speed sensor
  • K-line connection to Bosch Digifant-1 ecu (requires ecu with a custom chip from http://digifant-onlineabstimmung.de/ )
  • PC Software (Linux and Windows) for logging and analyzing of the measired data
  • smartphone app for nokia n900 available; android app is currently under development

Ein Opensource Datenlogger, Boostcontroller und Display für Autos

Features:

  • vorbereitet für den Anschluss eines 3.3 V Bluetooth Modules
  • robuster 12V Eingang für automotive Umgebung
  • 20x4 LCD Display
  • Seeeduino Mega mit ATmega1280/2560 MCU
  • Geschwindigkeitseingang
  • Gang-Berechnung
  • Gang- und Drehzahlabhängige Ladedruckregelung
  • 8 Typ K Thermoelemente für Abgastemperaturmessungen.
  • Motordrehzahl-Eingang.
  • RGB Warn LED (z.B. für zu hohe AGT).
  • 8 VDO Sensoren, Druck oder Temperatur.
  • Lamba Eingang für Sprungsonde oder Breitbandsignal eines Lambda-Controllers wie z.B. PLX SM-AFR
  • Drosselklappen-Stellung
  • LMM
  • Ladedruck
  • Mitloggen und Visualisieren der Daten per USB oder Bluetooth an einen PC / Smartphone
  • Loggen von Events wie maximaler Ladedruck etc
  • BorgWarner EFR speed sensor auslesen
  • K-line Verbindung zu Bosch Digifant-1 Ecu (Spezial-Chip für Digifant-I von http://digifant-onlineabstimmung.de/ nötig)
  • PC software zum Loggen und Analysieren der Daten
  • Smartphone App für Nokia N900 verfügbar; Android App ist in der Entwicklung

multidisplay smartphone app for android, maemo and pc app for linux and windows

We wrote a Qt-app called mUI for linux, windows (pc) and smartphone (android, maemo). mUI development has its own github project: https://github.com/digifant/multidisplay-app

multidisplay smartphone app for android

multidisplay android app

multidisplay smartphone app on nokia n900

mui app on nokia n900 (maemo)
