HSimpleList
HSimpleList widget informations
Updated Feb 4, 2010 by fr.dan...@gmail.com

Introduction

This widget is a simple list widget, as much as I could think similar to the winforms ListBox. I created because it's faster to use then the usual treeview gtk widget. It also implements the nice ListBox events MeasureItem and DrawItem. It supports multiple selection also.

Details

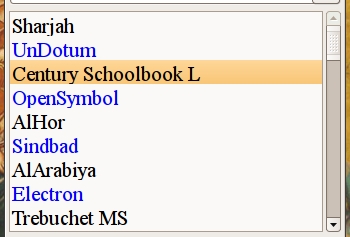

V 1.0

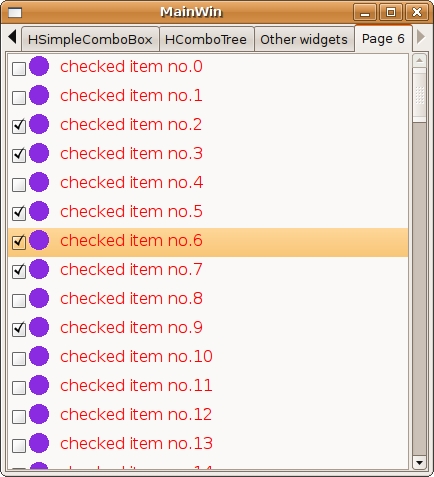

V 2.0 with checkbox support and a circle drawn with the OwnerDrawn property enabled


Methods:

bool IsSelected ( int index ) returns true if index is the Selected index
void RemoveAllItems - removes all items - equivalent with Items.Clear()
void Sort - sorts the items of the list
void Sort ( IComparer comparer ) sorts the items of the list using a custom comparer
object getSelectedItems - returns an array of the selected items
int getSelectedIndexes - returns an array of the selected indexes
void CheckItemAt ( int index ) check's the item at the given index
void UnCheckItemAt ( int index ) uncheck's the item at the given index

Properties:

int SelectedIndex gets/sets the current selected index
int ItemHeight gets/sets the item's default height
ObjectCollection Items list items collection
object SelectedItem gets/sets the current selected item
string Text gets/sets the current selected item ( as a string )
bool OwnerDraw gets/sets the items drawing mode.
Gtk.SelectionMode SelectionType the current list selection mode
List
<object>
CheckedItems the current checked item list
List
<int>
CheckedItemIndexes the indexes list of the checked items
bool IsCheckBoxList if true, the list is a checkbox list

Events:

EventHandler SelectedIndexChanged - raised when the selection index changes
DrawItemEventHandler DrawItem - usefull when you set the OwnerDrawn to true. See code sample for example
MeasureItemEventHandler MeasureItem - usefull when you set the OwnerDrawn to true. See code sample for example
ListItemCheck ItemCheck - raised when the checked state of a list item is changed


Code samples

  • How to add a an item to the list:
  •    listWidget.Items.Add("test!");
       //or add a object
       listWidget.Items.Add( new MyClass() );
  • How to add multiple items to the list:
  •    string[] items = new string[]{"red", "green", "blue", "yellow", "white"};
       listWidget.Items.AddRange( items );
  • How to modify an item at a given index:
  •    int index = 10;
       listWidget.Items[ index ] = "my new value!";
  • How to remove an item :
  •   //remove the item at the 10'th index
      int index = 10;
      listWidget.Items.RemoveAt( index );
      //remove an object item:
      listWidget.Items.Remove( item );
  • How to remove all items from list:
  •    listWidget.RemoveAllItems();
       //or:
       listWidget.Items.Clear();
  • How to get / change the selected index/item :
  •    Console.WriteLine("Selected index is:" + listWidget.SelectedIndex );
       Console.WriteLine("Selected item is :" +listWidget.SelectedItem   );
       //change current index
       listWidget.SelectedIndex = 15;
       Console.WriteLine("Selected index is:" + listWidget.SelectedIndex );
       Console.WriteLine("Selected item is :" +listWidget.SelectedItem   );
       //change current item
       listWidget.SelectedItem = "my item";
       Console.WriteLine("Selected index is:" + listWidget.SelectedIndex );
       Console.WriteLine("Selected item is :" +listWidget.SelectedItem   );
  • How to set the default item's height:
  •    listWidget.ItemHeight = 25;
  • How to sort the list items:
  •    //use the default sorting:
       listWidget.Sort();
       //or use a comparer
       listWidget.Sort( MyComparer );
  • SelectionType example:

Selection types are

  1. Browse
  2. Extended
  3. Multiple
  4. None
  5. Single
In this example we will use the Multiple selection type:

using HollyLibrary;
using Gtk;

public class MainWin : Gtk.Window
{
        HSimpleList list   = new HSimpleList();
        Button      btn    = new Button("Get selected");

        public MainWin() : base(Gtk.WindowType.Toplevel)
        {
            this.DeleteEvent  += new Gtk.DeleteEventHandler( this.OnDeleteEvent );
            btn.Clicked       += new EventHandler( this.OnBtnClicked );
            //set the selection type
            list.SelectionType = Gtk.SelectionMode.Multiple;
			//add some items
			list.Items.AddRange( new String[] {"item1","item2","item3","item4"});
            //create a simple layout
			ScrolledWindow sw  = new ScrolledWindow();
			sw.Add( list );
            VBox layout        = new VBox();
            layout.PackStart( sw, false, false, 0 );
            layout.PackStart( btn , false, false, 0 );
            //add the widget to the window
            this.Add( layout );
            //show window
            this.ShowAll();
        }

        private void OnBtnClicked (object sender, EventArgs args)
        {
            //you have to possibilities here: use the getSelectedIndexes() or use the
            //getSelectedItems() methods.
            object[] selected_items = list.getSelectedItems();
            foreach( object item in selected_items )
            {
                Console.WriteLine( item );
            }
            int[] selected_indexes = list.getSelectedIndexes();
            foreach( int index in selected_indexes )
            {
                Console.WriteLine( "index: " + index );
            }
        }

        protected virtual void OnDeleteEvent (object o, Gtk.DeleteEventArgs args)
        {
                Gtk.Application.Quit();
                args.RetVal = true;
        }

        public static void Main (string[] args)
        {
                Gdk.Threads.Init ();
                Application.Init ();
                MainWin win = new MainWin();
                win.Show ();
                Gdk.Threads.Enter();
                Application.Run ();
                Gdk.Threads.Leave();
        }
}
  • How to create customized lists ( owner drawn ):

In this example we will create a font list similar to the font picker's one.

// Test.cs created with MonoDevelop
// User: dantes at 1:49 PMĀ 5/19/2008
//

using System;
using System.Drawing;
using HollyLibrary;


namespace test
{


	public class Test : Gtk.Window
	{

	HSimpleList list   = new HSimpleList();

        public Test() : base(Gtk.WindowType.Toplevel)
        {
            this.DeleteEvent   += new Gtk.DeleteEventHandler( this.OnDeleteEvent );
	    list.OwnerDraw      = true;
	    list.OnDrawItem    += new DrawItemEventHandler( this.on_draw_item );
	    list.OnMeasureItem += new MeasureItemEventHandler( this.on_measure_item );
            //create a simple layout
	     Gtk.ScrolledWindow sw  = new Gtk.ScrolledWindow();
	     sw.Add( list );
             //add the widget to the window
             this.Add( sw );
	     //add font list to list
	     FontFamily[] fonts = FontFamily.Families;
	     int i = 0;
	     foreach( FontFamily font in fonts )
	     {
		list.Items.Add( font.Name );
	     }
            //show window
            this.ShowAll();
        }

	private void on_draw_item( object o, DrawItemEventArgs args )
	{
		String font_name     = list.Items[ args.ItemIndex ].ToString();
		Graphics g           = args.Graphics;
		g.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighSpeed;

		Font font            = new System.Drawing.Font( font_name, 10F );
		Color color          = System.Drawing.Color.Black;
		SolidBrush b         = new System.Drawing.SolidBrush( color );
		g.DrawString( font_name, font, b, args.CellArea.X, args.CellArea.Y );

	}

	private void on_measure_item( object o, MeasureItemEventArgs args )
	{
		//make alternative heights for demonstration
		if( args.Index % 2 == 0 )
			args.ItemHeight = 20;
		else
			args.ItemHeight = 40;
	}

        protected virtual void OnDeleteEvent (object o, Gtk.DeleteEventArgs args)
        {
                Gtk.Application.Quit();
                args.RetVal = true;
        }

        public static void Main (string[] args)
        {
                Gdk.Threads.Init ();
                Application.Init ();
                Test win = new Test();

                win.Show ();
                Gdk.Threads.Enter();
                Application.Run ();
                Gdk.Threads.Leave();
        }
    }
}
  • How to create a checkbox list, also ownerdrawn:
using System;
using System.Drawing;
using HollyLibrary;


namespace test
{


	public class Test : Gtk.Window
	{

	HSimpleList list   = new HSimpleList();

        public Test() : base(Gtk.WindowType.Toplevel)
        {
            this.DeleteEvent   += new Gtk.DeleteEventHandler ( this.OnDeleteEvent   );
	    list.OwnerDraw      = true;
            list.IsCheckBoxList = true;
            //list events
	    list.DrawItem    += new DrawItemEventHandler   ( this.on_draw_item    );
	    list.MeasureItem += new MeasureItemEventHandler( this.on_measure_item );
            list.ItemCheck   += new ListItemCheck          ( this.on_item_check   );
             //create a simple layout
	     Gtk.ScrolledWindow sw  = new Gtk.ScrolledWindow();
	     sw.Add( list );
             //add the widget to the window
             this.Add( sw );
	     //add some items to the list

	     list.ItemHeight = 25;
	     for( int i = 0; i < 100; i++ )
		list.Items.Add( "checked item no." + i );

            //show window
            this.ShowAll();
        }

	private void on_draw_item( object o, DrawItemEventArgs args )
	{
		Graphics g       = args.Graphics;
	        //get the item's text
		String item_text = list.Items[ args.ItemIndex ].ToString();
		//draw a small circle - just for fun
		Rectangle rect   = new Rectangle( args.CellArea.X , args.CellArea.Y, 20, 20 );
		g.FillEllipse( new SolidBrush( Color.DarkBlue ), rect );
		//draw the item's text
		Font font        = new Font("",12F);
		g.DrawString ( item_text, font, new SolidBrush(Color.Red), args.CellArea.X +30, args.CellArea.Y );
		//dispose
		g.Dispose();
	}

        private void on_item_check (object sender, ListItemCheckEventArgs args)
	{
                //show the checked items:
		Console.WriteLine("----------");
		foreach( object obj in list.CheckedItems )
		{
			Console.WriteLine( obj.ToString() );
		}
		Console.WriteLine("----------");
	}

        protected virtual void OnDeleteEvent (object o, Gtk.DeleteEventArgs args)
        {
                Gtk.Application.Quit();
                args.RetVal = true;
        }

        public static void Main (string[] args)
        {
                Application.Init ();
                Test win = new Test();
                win.Show ();
                Application.Run ();
        }
    }
}
