Get Fluorida

Download Pre-built Binary

Download Fluorida zip package and unzip.

That's it.

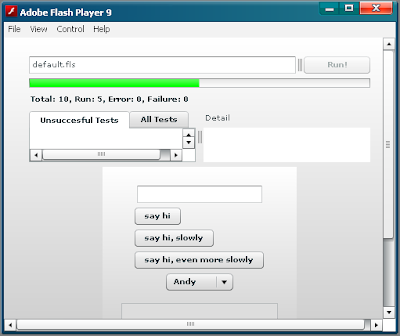

Open Tester.swf with Adobe Flash Player, and you should see a successful test suite running.

Build From Source Code

Check out Fluorida source code from our Subversion repository:

# Non-members may check out a read-only working copy anonymously over HTTP.
svn checkout http://fluorida.googlecode.com/svn/trunk/ fluorida-read-only

Rake, Flex 3 SDK and Flash Player are required to build Fluorida. NOTE: Flex Builder is not required.

Make sure rake and mxmlc are in PATH. Download Flash Player to $PROJECT_ROOT/sa_flashplayer_9_debug.exe. Then invoke rake at $PROJECT_ROOT and you should see a successful test suite running.

(If you haven't downloaded Flash Player, Fluorida build script will do that for your. In that case you have to make sure wget is in PATH.)

Invoke rake to re-build Fluorida without running test suite. You can find built binary at $PROJECT_ROOT/bin.

Use Fluorida Locally

Running locally, Fluorida always loads test suite from default.fls, which exists in the same directory along with Tester.swf. Edit default.fls to refer to your test cases.

Use Fluorida Within Website

• Embed Tester.swf into a web page:

<object classid="clsid:D27CDB6E-AE6D-11cf-96B8-444553540000"
     id="Tester" width="800" height="600"
     codebase="http://download.macromedia.com/pub/shockwave/cabs/flash/swflash.cab">
 <param name="movie" value="<%= tester_swf %>" />
 <param name="allowScriptAccess" value="always" />
 <embed src="<%= tester_swf %>" name="Tester" align="middle" allowScriptAccess="always"
     play="true" loop="false" type="application/x-shockwave-flash"
	 width="800" height="600"
     pluginspage="http://www.macromedia.com/go/getflashplayer">
  </embed>
</object>

• Define startTest() Javascript function in the web page, this function should
1. specify URL of test suite, then
2. kick off test

     function startTest() {
	     thisMovie("Tester").setTestSuite("<%= @suite_url %>");
	     thisMovie("Tester").startTest();
     }

     function thisMovie(movieName) {
         if (navigator.appName.indexOf("Microsoft") != -1) {
             return window[movieName];
         } else {
             return document[movieName];
         }
     }

Write Your Own Tests

A Fluorine test suite (*.fls) is a plain-old-text-file. Each row in that file represents the URL of a test case. For example:

# This is a test suite
sample/success_case.flt
sample/error_case.flt
sample/fail_case.flt

A Fluorine test case (*.flt) is yet-another-plain-old-text-file. Each row in that file represents a command. A command is a vertical-bar-separated-string. The first column of a command is the action and others are arguments. For example:

# This is a successful test case
|open|aut.swf|
|click|helloButton|
|verifyText|helloText|hi there|

Before we come up to more sophisticated reference documentation, please refer to our samples when you write your own tests.
